Parses mRemoteNG's confCons.xml export format directly -- schema verified against mRemoteNG's own XmlConnectionsDeserializer.cs source and a real exported sample, not guessed at. Maps nested <Node Type="Container"> folders and <Node Type="Connection"> entries onto OrbitHub profiles: RDP stays RDP, SSH1/SSH2 collapse to OrbitHub's single SSH protocol, anything else (VNC, Telnet, HTTP, PowerShell, ...) is skipped and listed in the import summary rather than silently dropped. Passwords are never read, not even for the common case where they're technically readable without a master password (mRemoteNG only encrypts the Password attribute itself, everything else -- Hostname, Username, Domain, Protocol -- is plaintext). A FullFileEncryption="true" export encrypts the whole node tree instead and genuinely can't be read without the user's master password; that case is detected and refused with a clear message rather than failing confusingly. The parser (src/mremoteng_importer.h/.cpp) is a pure function decoupled from any file/UI I/O, matching this session's established pattern of keeping business logic separately testable from the Qt Widgets shell that calls it (ProfilesWindow::importFromMRemoteNG() is the thin wrapper: QFileDialog, call the parser, write results via ProfileRepository, show a summary). 11 test cases against realistic sample XML. Hit a real moc gotcha along the way: a literal "//" inside a raw string literal (the xmlns URL) makes moc's lexer think a line comment started there, silently desyncing its parse so it never finds the QObject-derived test class at all (no error, just a missing vtable at link time). Fixed by moving the XML fixtures into a plain non-QObject header moc never scans, split across two adjacent literals as a second safeguard. Co-Authored-By: Claude Sonnet 5 <noreply@anthropic.com>
OrbitHub
OrbitHub is a cross-platform native desktop app for managing and launching remote sessions from one place.
It is implemented in C++17 with Qt6 Widgets and built with CMake.
Supported target platforms:
- Windows
- Linux
- macOS
Current Status
OrbitHub is in active development.
- Milestones completed: M0-M5, and M7-M9
- Current milestone: Milestone 10 (v1.0 Stabilization)
- Deferred milestone: Milestone 6 (VNC Fully Working)
- Latest checkpoint tag:
v2026.9.15 - VNC implementation milestone (M6) is currently deferred
Progress and milestone details:
Latest release (installers for Windows, Linux, and macOS):
User Guide:
- docs/USER_GUIDE.md (also available as a PDF attached to each release, and in-app via
Help -> User Guide)
Screenshots

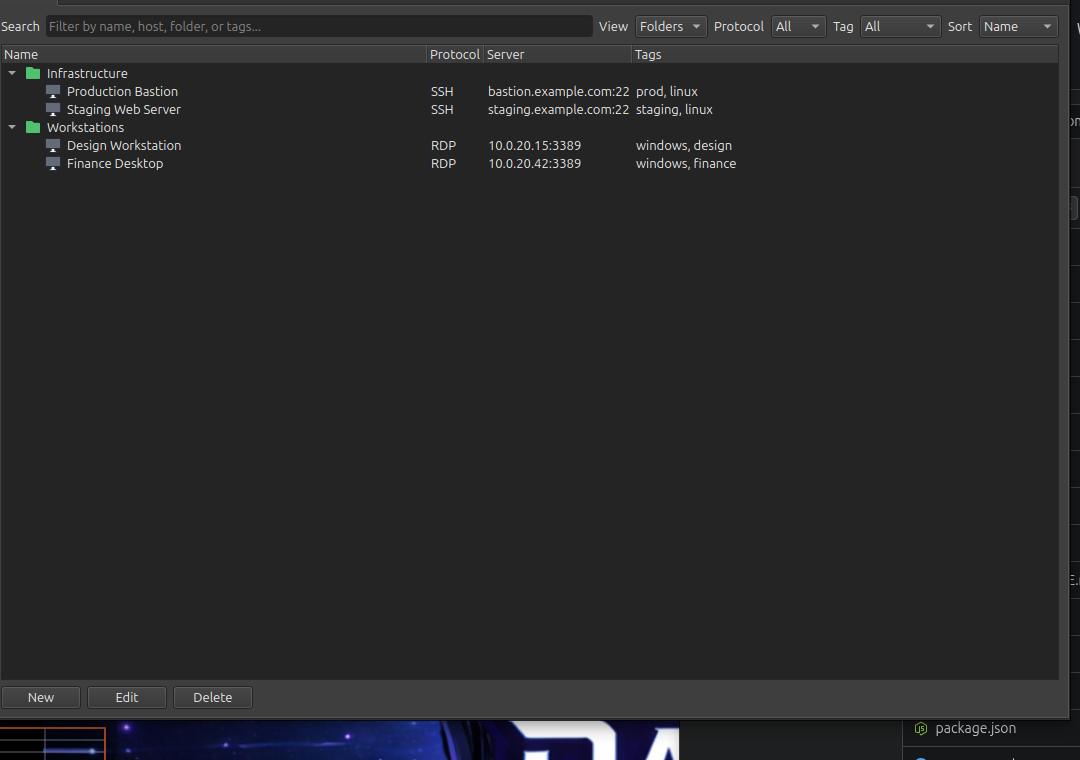

Profiles organized into folders, with protocol, host, and tags shown at a glance. (Sample data shown; not real hosts.)

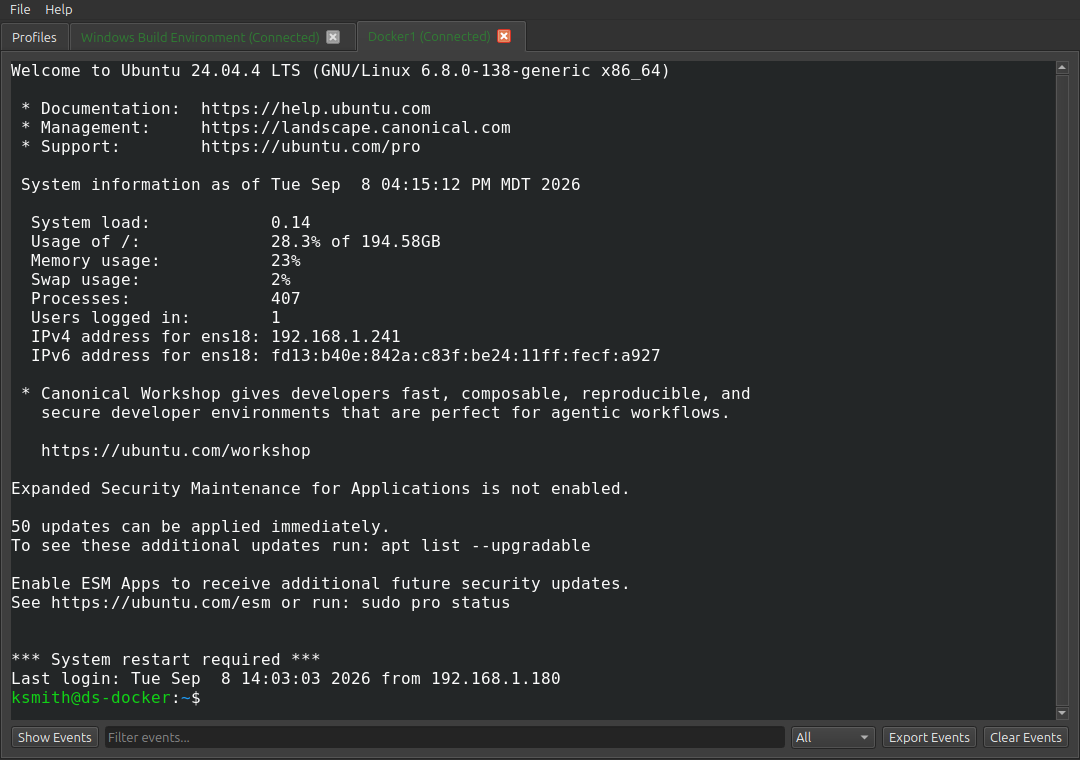

An interactive SSH terminal session in a tab, with the event log below.

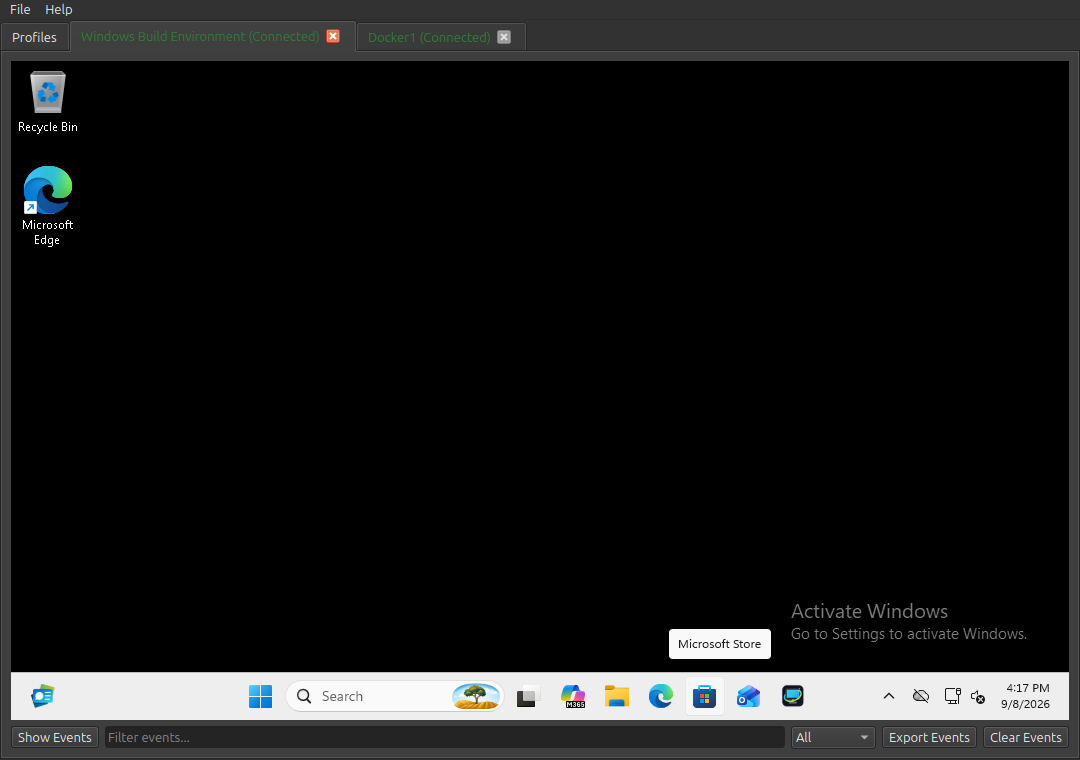

An embedded RDP session in a tab.
Implemented Features
Profile Management
- SQLite-backed profile storage
- Create, edit, delete profiles
- Protocol-aware profile validation (SSH/RDP/VNC)
- Profile search and sorting
- Tags support
- Folder/subfolder support
ListandFoldersprofile views- Right-click profile tree actions:
- New Folder
- New Connection
- Drag-and-drop profile moves between folders with persistence
Session Experience
- Multi-tab session window
- Auto-connect on tab open
- Disconnect on tab close
- Session state indicators on tabs
- Timestamped event log with filtering and export
SSH
- Embedded interactive terminal (in-app typing)
- Theme support (
Dark,Light,Solarized Dark) - Password and private-key auth flows
- Known-hosts policy support
RDP
- Embedded in-window RDP rendering surface (no external launcher)
- Keyboard/mouse input forwarding
- Resize handling and resolution renegotiation
- Domain-aware authentication support
- RDP security/performance profile options
App UX
- App icon and themed About dialog
Filemenu:- New Profile
- New Folder
- Quit
Helpmenu:- About OrbitHub
Build and Run
Detailed platform instructions:
Quick start (Linux/macOS with Ninja):
cmake -S . -B build -G Ninja
cmake --build build
./build/orbithub
Packaging
Detailed packaging instructions for all platforms:
Linux (.deb):
./packaging/linux/build-deb.sh
Linux (Flatpak):
./packaging/flatpak/build-flatpak.sh
Windows (Inno Setup installer):
.\packaging\windows\build-installer.ps1
macOS (.dmg):
./packaging/macos/build-dmg.sh
Dependencies
Core dependencies:
- Qt 6 (Widgets, SQL)
- CMake 3.21+
- C++17 toolchain
Protocol/runtime dependencies:
- SSH client (
ssh) available onPATHfor SSH sessions
Bundled/vendored third-party components:
- KodoTerm
- libvterm
- FreeRDP/WinPR
Licensing
Project license:
- MIT (see LICENSE)
License links:
- MIT License: https://opensource.org/licenses/MIT
- GNU LGPLv3: https://www.gnu.org/licenses/lgpl-3.0.html
- Apache License 2.0: https://www.apache.org/licenses/LICENSE-2.0
Important third-party license notes:
- Qt6 is dynamically linked in this project build setup.
- Qt6 is used under LGPLv3 terms in this project build setup.
- KodoTerm and libvterm are MIT-licensed.
- FreeRDP/WinPR is Apache-2.0 licensed.
Repository license files:
- Project: LICENSE
- KodoTerm: third_party/KodoTerm/LICENSE
- FreeRDP: third_party/FreeRDP/LICENSE
See in-app Help -> About OrbitHub for license links and third-party inventory.
Repository Structure
src/- application source codedocs/- build guide, spec, and progress trackingthird_party/- vendored third-party dependenciesbuild/- local build output (generated)
Notes
- Passwords are requested at connect time and are not stored in the profile database.
- This repository currently prioritizes integrated SSH and RDP workflows while VNC implementation is pending.
