Apple's macOS Screen Sharing server doesn't speak standard VNC Authentication -- it uses a Diffie-Hellman key exchange followed by AES-128-ECB-encrypted credentials, security type 30. Apple never published this scheme (it's not part of RFC 6143); this implements the well-established reverse-engineered wire format: the server sends a generator, prime, and its own DH public key; the client generates an ephemeral keypair, derives the shared secret, MD5-hashes it into an AES key, and sends back its public key plus a 128-byte encrypted username+password buffer. The DH/AES math lives in new src/vnc_apple_dh_auth.h/.cpp as a pure, socket-free helper (mirroring vncAuthResponse()'s shape for standard VNC Auth), built entirely on modern EVP_PKEY-based OpenSSL 3.0 APIs -- no deprecated low-level DH_* calls, unlike VNC Authentication's necessary use of classic DES. Reuses Profile::username (already a shared field) since Apple's scheme needs an actual macOS account name, unlike password-only VNC Authentication. Security-type preference when multiple are offered is now None > AppleDH > VNCAuth, since DH+AES is strictly stronger than static- challenge DES. Adds a DH round-trip test (generates a real 512-bit group at test time, computes the response, then independently re-derives the shared secret as the server would and decrypts the credentials back out -- proving self-consistency without needing a hand-computed expected value), a fake-server integration test for the full RFB 3.8 handshake sequencing, and a preference-order test. Not yet live-verified against a real macOS Screen Sharing server -- that's next. Co-Authored-By: Claude Sonnet 5 <noreply@anthropic.com>
OrbitHub
OrbitHub is a cross-platform native desktop app for managing and launching remote sessions from one place.
It is implemented in C++17 with Qt6 Widgets and built with CMake.
Supported target platforms:
- Windows
- Linux
- macOS
Current Status
OrbitHub is in active development.
- Milestones completed: M0-M9
- Current milestone: Milestone 10 (v1.0 Stabilization)
- Latest checkpoint tag:
v2026.9.15 - VNC (M6) covers standard VNC Authentication and no-auth servers; see docs/PROGRESS.md for known gaps (Apple Screen Sharing auth, compression encodings, resize, cursor sync, clipboard)
Progress and milestone details:
Latest release (installers for Windows, Linux, and macOS):
User Guide:
- docs/USER_GUIDE.md (also available as a PDF attached to each release, and in-app via
Help -> User Guide)
Screenshots

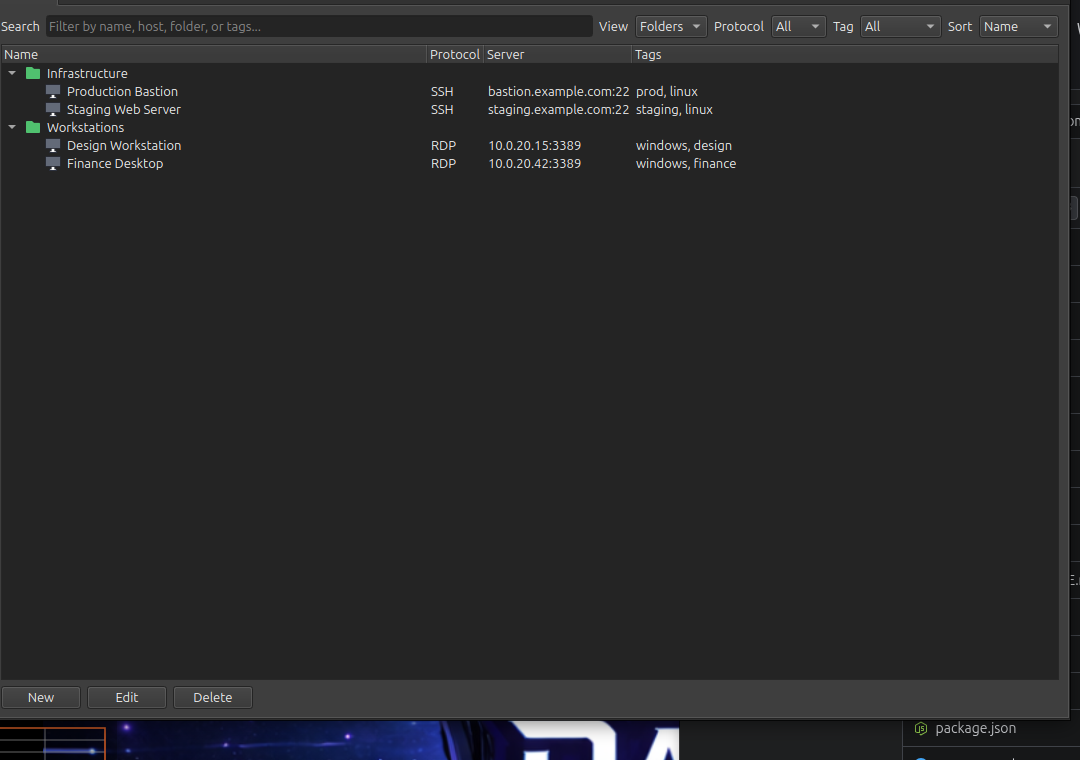

Profiles organized into folders, with protocol, host, and tags shown at a glance. (Sample data shown; not real hosts.)

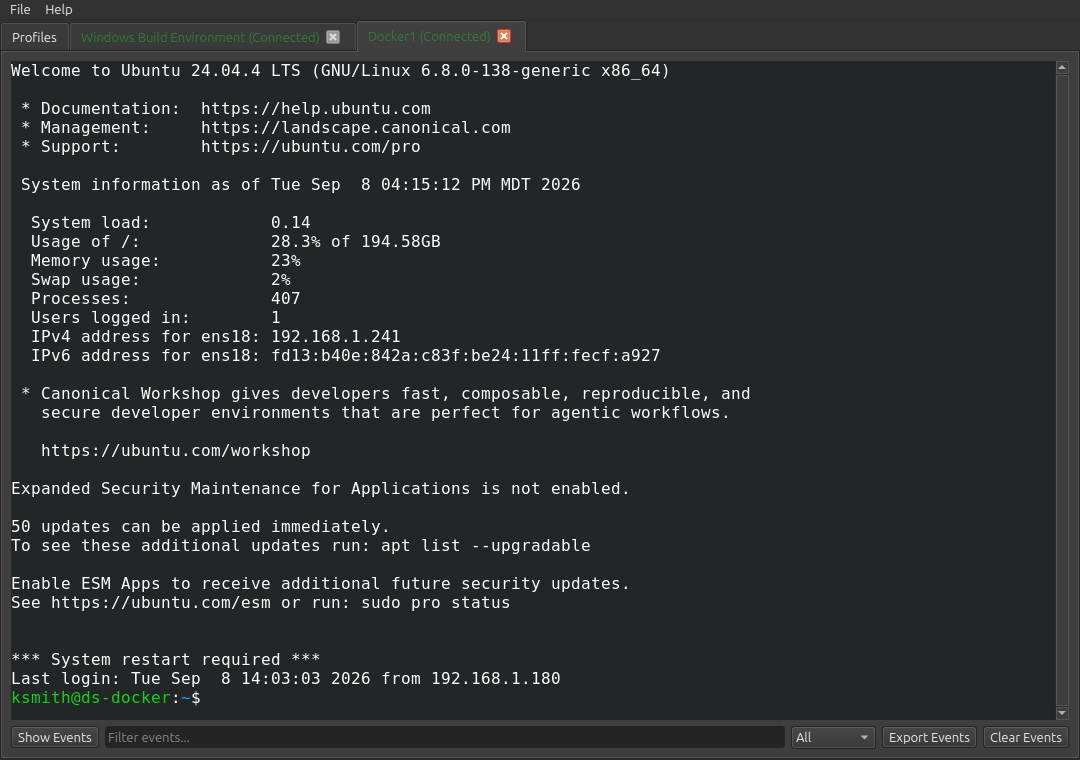

An interactive SSH terminal session in a tab, with the event log below.

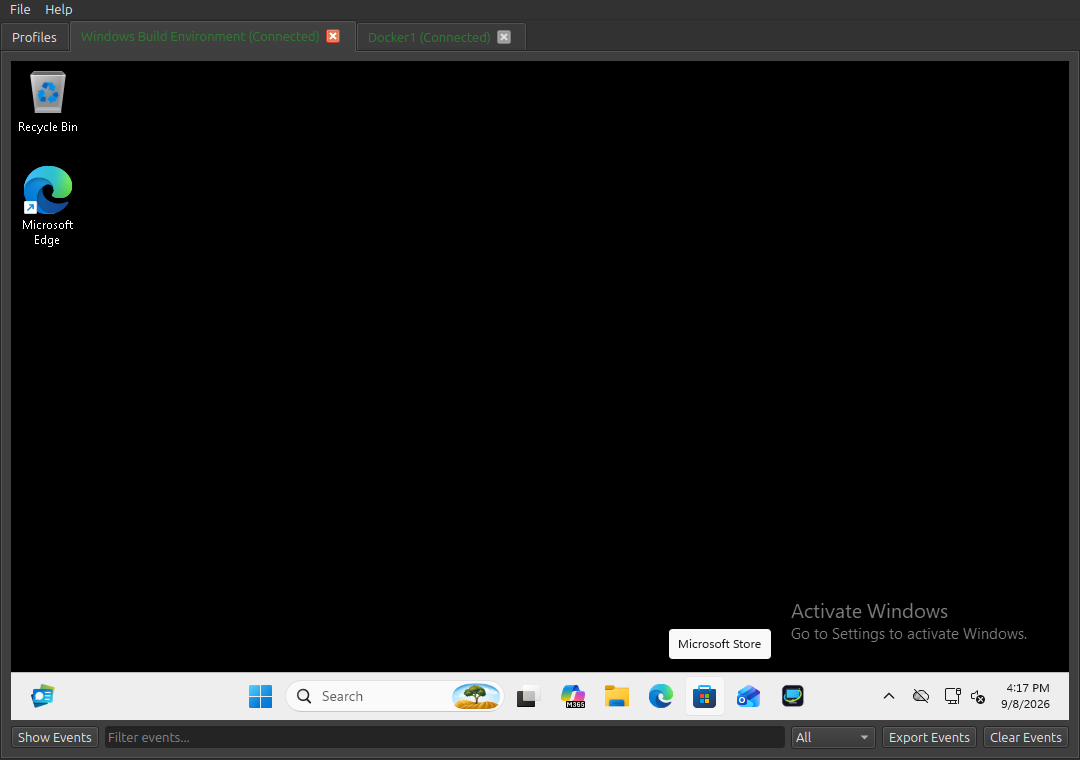

An embedded RDP session in a tab.
Implemented Features
Profile Management
- SQLite-backed profile storage
- Create, edit, delete profiles
- Protocol-aware profile validation (SSH/RDP/VNC)
- Profile search and sorting
- Tags support
- Folder/subfolder support
ListandFoldersprofile views- Right-click profile tree actions:
- New Folder
- New Connection
- Drag-and-drop profile moves between folders with persistence
Session Experience
- Multi-tab session window
- Auto-connect on tab open
- Disconnect on tab close
- Session state indicators on tabs
- Timestamped event log with filtering and export
SSH
- Embedded interactive terminal (in-app typing)
- Theme support (
Dark,Light,Solarized Dark) - Password and private-key auth flows
- Known-hosts policy support
RDP
- Embedded in-window RDP rendering surface (no external launcher)
- Keyboard/mouse input forwarding
- Resize handling and resolution renegotiation
- Domain-aware authentication support
- RDP security/performance profile options
App UX
- App icon and themed About dialog
Filemenu:- New Profile
- New Folder
- Quit
Helpmenu:- About OrbitHub
Build and Run
Detailed platform instructions:
Quick start (Linux/macOS with Ninja):
cmake -S . -B build -G Ninja
cmake --build build
./build/orbithub
Packaging
Detailed packaging instructions for all platforms:
Linux (.deb):
./packaging/linux/build-deb.sh
Linux (Flatpak):
./packaging/flatpak/build-flatpak.sh
Windows (Inno Setup installer):
.\packaging\windows\build-installer.ps1
macOS (.dmg):
./packaging/macos/build-dmg.sh
Dependencies
Core dependencies:
- Qt 6 (Widgets, SQL)
- CMake 3.21+
- C++17 toolchain
Protocol/runtime dependencies:
- SSH client (
ssh) available onPATHfor SSH sessions
Bundled/vendored third-party components:
- KodoTerm
- libvterm
- FreeRDP/WinPR
Licensing
Project license:
- MIT (see LICENSE)
License links:
- MIT License: https://opensource.org/licenses/MIT
- GNU LGPLv3: https://www.gnu.org/licenses/lgpl-3.0.html
- Apache License 2.0: https://www.apache.org/licenses/LICENSE-2.0
Important third-party license notes:
- Qt6 is dynamically linked in this project build setup.
- Qt6 is used under LGPLv3 terms in this project build setup.
- KodoTerm and libvterm are MIT-licensed.
- FreeRDP/WinPR is Apache-2.0 licensed.
Repository license files:
- Project: LICENSE
- KodoTerm: third_party/KodoTerm/LICENSE
- FreeRDP: third_party/FreeRDP/LICENSE
See in-app Help -> About OrbitHub for license links and third-party inventory.
Repository Structure
src/- application source codedocs/- build guide, spec, and progress trackingthird_party/- vendored third-party dependenciesbuild/- local build output (generated)
Notes
- Passwords are requested at connect time and are not stored in the profile database.
- VNC support covers standard VNC Authentication and no-auth servers (e.g. TigerVNC, x11vnc, TightVNC); it doesn't yet reach macOS's built-in Screen Sharing server, which uses a different authentication scheme (see docs/PROGRESS.md, Milestone 6).
